Reinforcement Edge: How Proper Chopped Glass Strands Boost Your Composite Competitiveness

Table of Contents

Add a header to begin generating the table of contents

Introduction

Many composite manufacturers treat all fiberglass reinforcement materials the same. However, mismatched E-glass chopped strands will cause frequent production troubles: poor resin adhesion, product warpage, low mechanical strength and high rejection rates.

Whether you run injection molding workshops, BMC compression molding factories or wet-laid production lines, choosing qualified alkali-free glass fiber chopped strands directly decides product quality and profit. This buyer guide sorts out core features of mainstream fiberglass materials and helps you pick ideal short cut glass fiber for your manufacturing process.

Why Quality Chopped Glass Strands Matter for Composite Production

Low-grade fiberglass cannot replace standardized industrial chopped glass strands. Inferior fiber has uneven filament diameter and excessive alkali ions. Once blended with PP, PA, unsaturated polyester or epoxy resin, interfacial bonding weakens, leading to delamination and surface fuzz on finished parts.

The decisive factor of high-performance fiber is compatible silane sizing agent coated on every filament. Our factory customizes surface treatment formulas for different application scenarios, ensuring our thermoplastic chopped strands, BMC dry chopped strands and wet chopped strands achieve stable bonding with various resin systems.

Global manufacturers refer to ISO and ASTM standards to evaluate fiber tensile strength, moisture content and dispersibility. Our full series of chopped glass strands strictly follows international testing standards to support cross-border export.

Three Main Types of Industrial Chopped Glass Strands

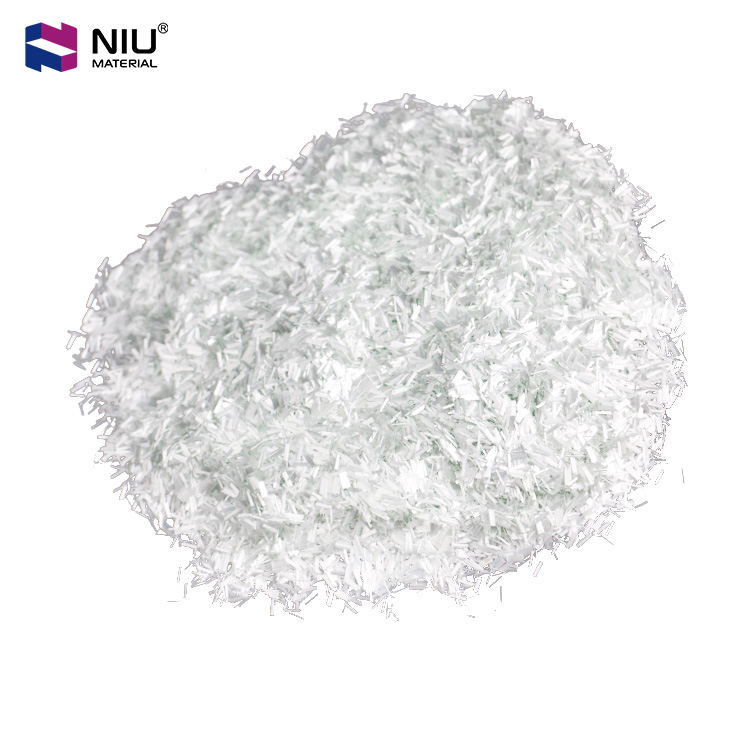

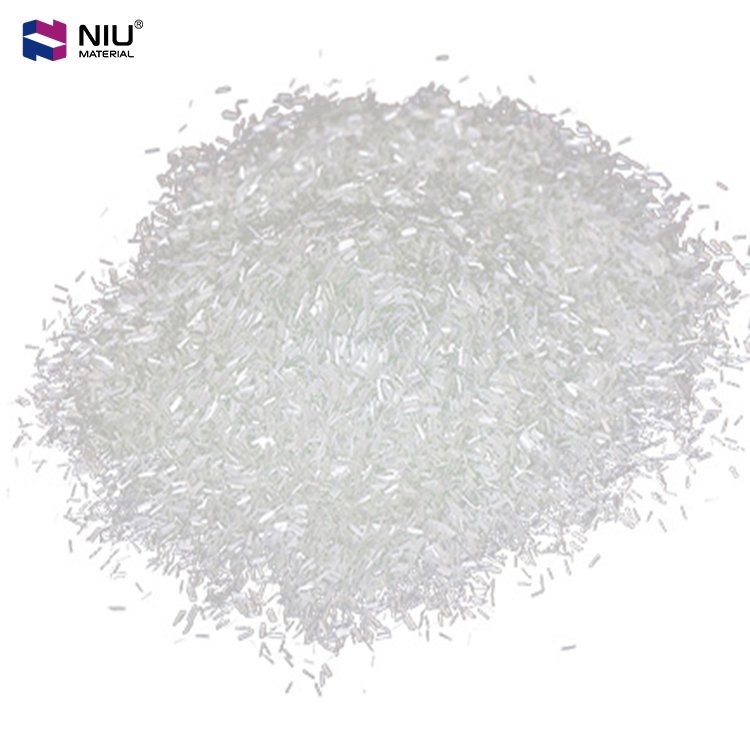

Type A Thermoplastic Chopped Strands

Made of alkali-free E-glass with special high-temperature silane sizing. Standard lengths: 3mm, 4.5mm.

Perfect for twin-screw granulation and injection molding of PA6, PA66, PBT, PP. Our thermoplastic chopped strands feature low fuzz, excellent dispersion and high-temperature resistance, widely used in new energy housings, auto structural parts and electrical components.

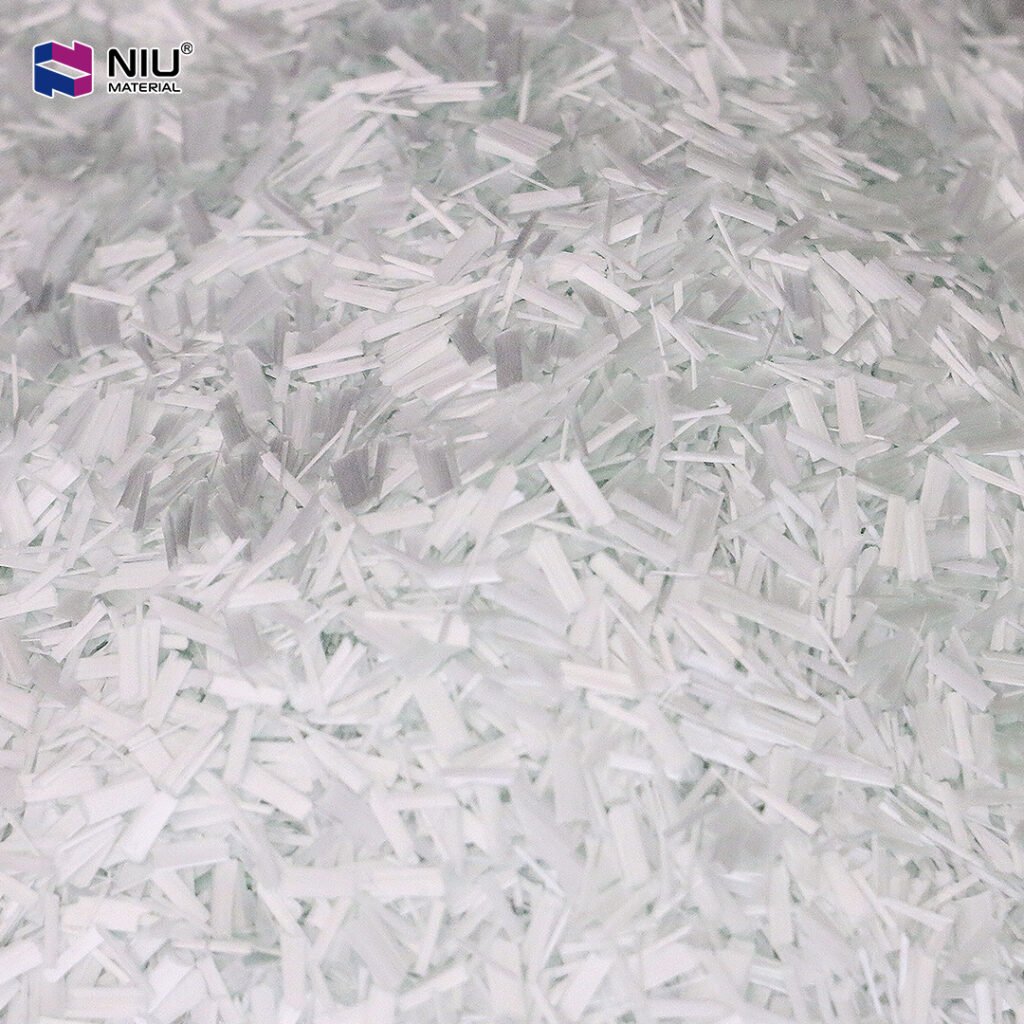

Type B BMC Dry Chopped Strands

Equipped with thermoset-resin compatible sizing agent. Common specification: 6mm, 12mm.

Designed for BMC & SMC compression molding. Our BMC dry chopped strands deliver fast resin wet-out, reduce bubble formation and offer cost advantages for mass production of electrical bases, bathroom composite parts and household appliance shells.

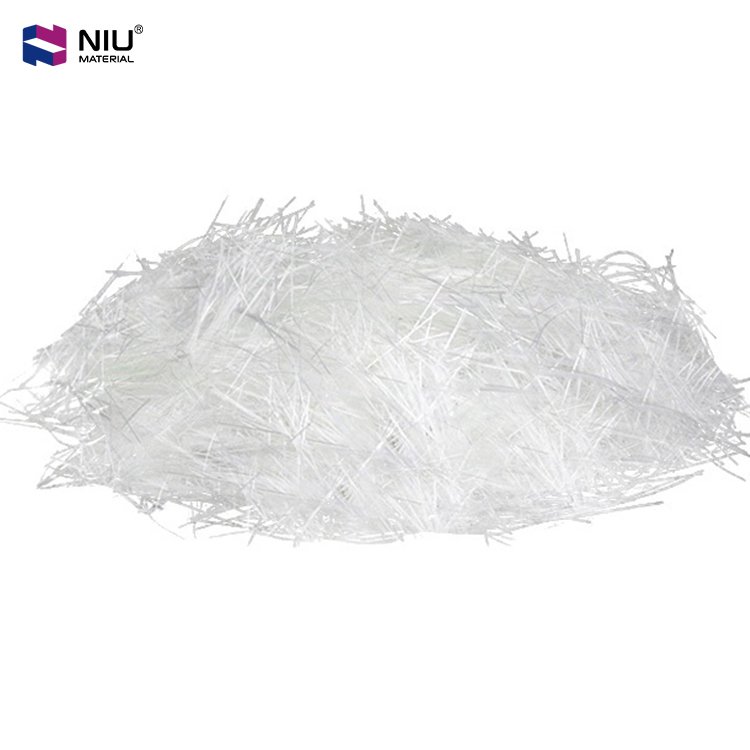

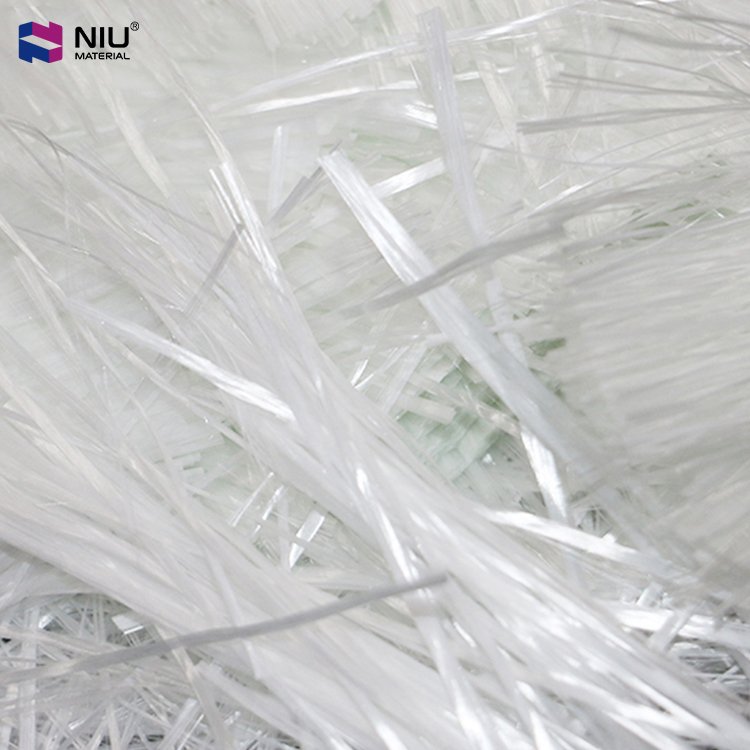

Type C Wet Chopped Strands

With water-soluble coating and outstanding water dispersibility. Regular cut length: 25mm, 50mm.

Suitable for wet process production including fiberglass filter mats, concrete reinforcement and catalyst carriers. Our wet chopped strands disperse evenly in water slurry without agglomeration.

Comparative Analysis: Type A vs Type B vs Type C Chopped Glass Strands

This metric table helps procurement managers and composite distributors compare three strand grades across core technical & commercial dimensions for data-driven purchasing decisions.

Strand Grade	Glass Base	Relative Cost Index	Reinforcement Performance	Ideal Molding Craft	Standard MOQ Notes
Type A Thermoplastic Dry Chopped Strands	E-glass + Thermoplastic silane sizing	High (100)	Maximum (Ultra-low fiber separation)	Twin-screw granulation, injection molding, high-temperature extrusion	Higher MOQ; dedicated sizing production line required
Type B BMC Dry Chopped Strands	E-glass + Thermoset silane sizing	Medium (60–72)	High (Surface sizing protection only)	BMC/SMC compression molding, unsaturated polyester molding	Medium MOQ; post-cut sizing coating process needed
Type C Wet Chopped Strands	Plain E-glass, water-soluble coating	Budget (35–48)	Moderate (Compliant for wet process low-load parts)	Wet papermaking, concrete reinforcement, filter mat production	Flexible low MOQ; mass stock ready for instant shipment

Non-Negotiable Selection Rules for Composite Manufacturers & Bulk Wholesalers

Resin Matrix & Molding Temperature Threshold

Your resin’s heat resistance and chemical property is the No.1 factor to confirm strand grade.

Medium-low temperature molding (<210℃, unsaturated polyester BMC): Type B BMC chopped strands deliver full performance at lower material cost.

High-temperature extrusion/injection molding (>230℃, PA/PP/PBT engineering plastics): Must adopt Type A thermoplastic chopped strands. Using Type B strands under sustained high heat will decompose sizing coating, cause severe fiber-resin debonding and sharp drop in finished part tensile strength

Aqueous wet slurry production (room-temperature water dispersion): Only Type C wet chopped strands achieve uniform suspension without filament clumping.

Finished Part Surface & Anti-Fuzz Requirement

Type A thermoplastic chopped strands: ultra-uniform filament diameter, tight silane coating, zero surface fuzz after molding, perfect for visible exterior parts of new energy vehicles and consumer electronics.
Type B BMC strands: minor surface micro-fuzz possible for non-visible internal structural parts, acceptable for cost-sensitive mass BMC production.
Type C wet chopped strands: obvious fiber texture on finished goods, only suitable for hidden filter, concrete and catalyst carrier products without strict surface appearance standards.

Automated Production Line Compatibility & Strand Cut Length

When ordering chopped glass strands wholesale, procurement teams must specify precise cut length matched to equipment:

3mm / 4.5mm strands: Standard for injection molding twin-screw equipment, smooth feeding without bridging.
6mm / 12mm strands: Designed for BMC/SMC compression molding, better three-dimensional stress support for thick structural parts.
25mm / 50mm wet strands: Exclusive for wet filter paper and concrete reinforcement, larger fiber network for anti-crack performance.

Supply Chain Flexibility & Minimum Order Quantities

For composite distributors, small-batch molding workshops and expanding cross-border composite brands, balancing MOQ pressure and inventory capital is a persistent challenge.

Custom sizing formulas & special cut lengths: Custom modified chopped strands require high MOQ (usually ≥10,000kg) to cover mold, sizing line and furnace setup costs.
Standard stock specifications (3mm thermoplastic strands, 12mm BMC strands, 25mm wet strands): Ready-to-ship bulk inventory with flexible low MOQ starting from 1,000kg, ideal for clients controlling inventory turnover and warehousing costs.

Get Reliable Chopped Glass Strands From Us

We are a professional manufacturer supplying full-series chopped glass strands.

Thermoplastic chopped strands for engineering plastic reinforcement

BMC dry chopped strands for thermoset BMC/SMC molding

Wet chopped strands for wet-laid and construction materials

Custom silane sizing, multiple cut lengths, stable quality and flexible MOQ. Free samples are available for your testing. Contact us now for technical datasheets and bulk quotation.

Conclusion

Selecting proper chopped glass strands eliminates unnecessary production loss. Our complete line of alkali-free glass fiber chopped strands can match.

thermoplastic, thermoset and wet process requirements. If you are sourcing stable, cost-effective short cut glass fiber, welcome to cooperate with us.
